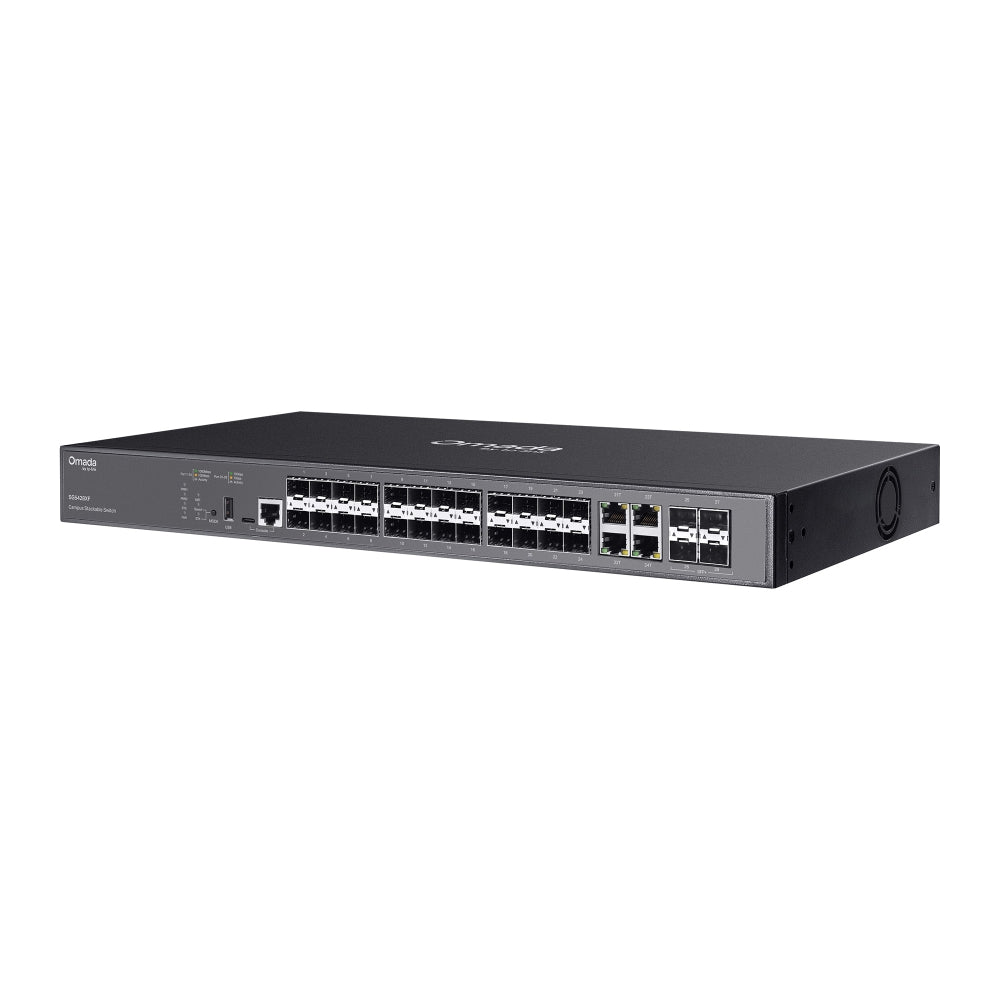

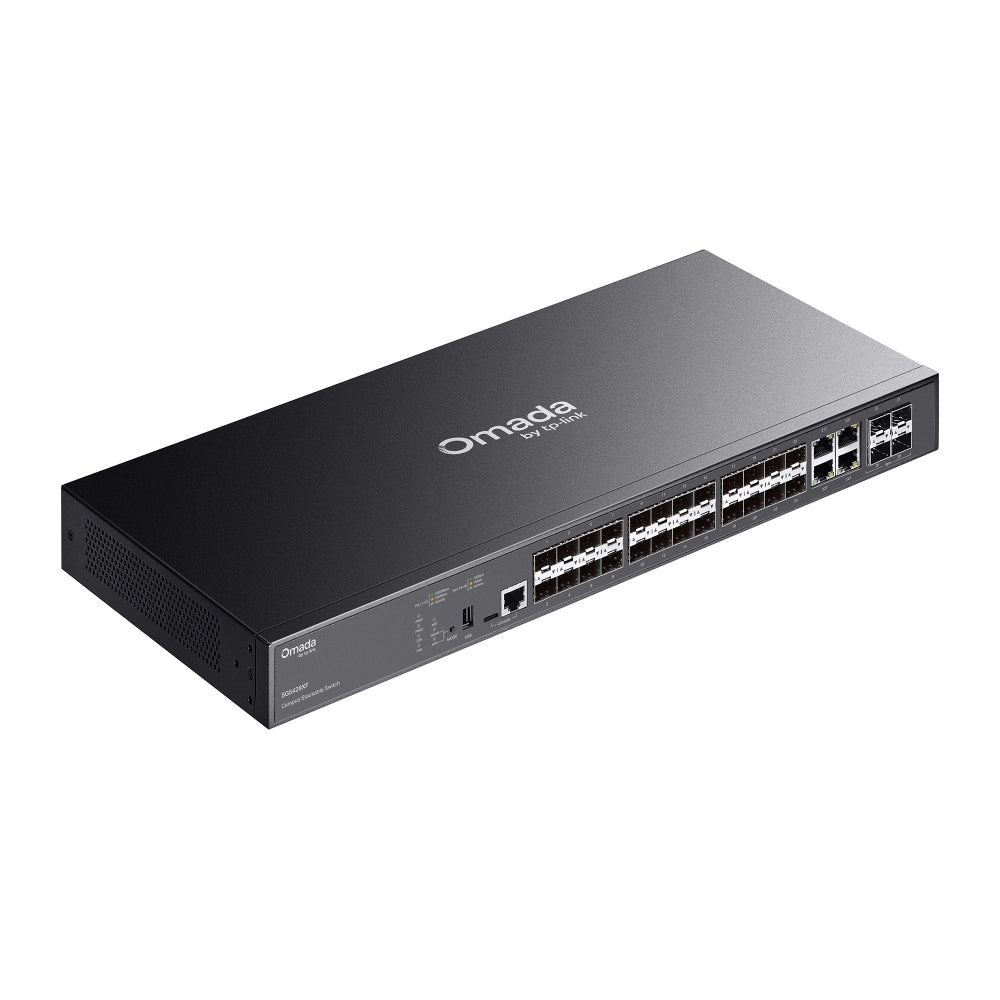

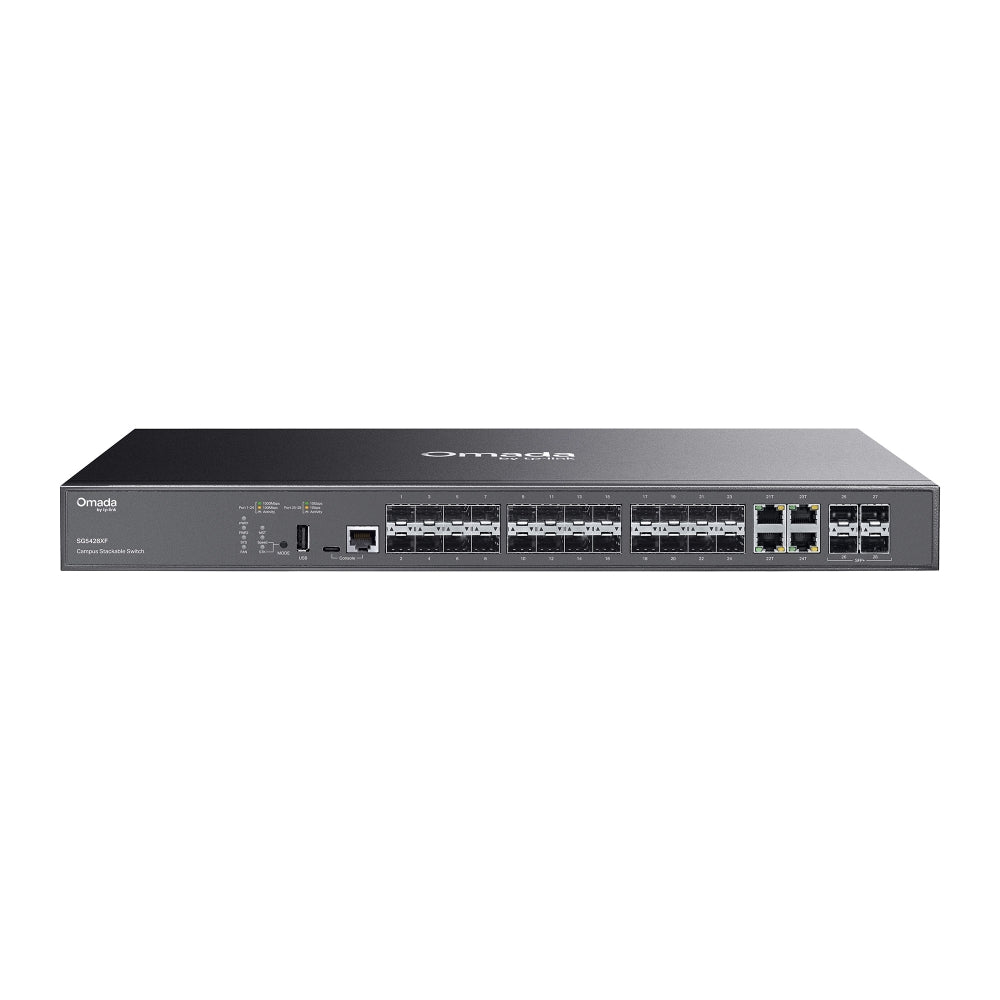

SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots

SG5428XF Omada Campus 24-Port SFP Stackable Lite L3 Managed Switch with 4× 10G Slots

Rs.174,999.00 PKR
Rs.174,999.00 PKR
Sale Sold out
Shipping calculated at checkout.
  • 20× Gigabit SFP slots and 4× Gigabit RJ45/SFP Combo ports
  • 4× 10 Gbps SFP+ slots
  • 128 Gbps switching capacity per unit

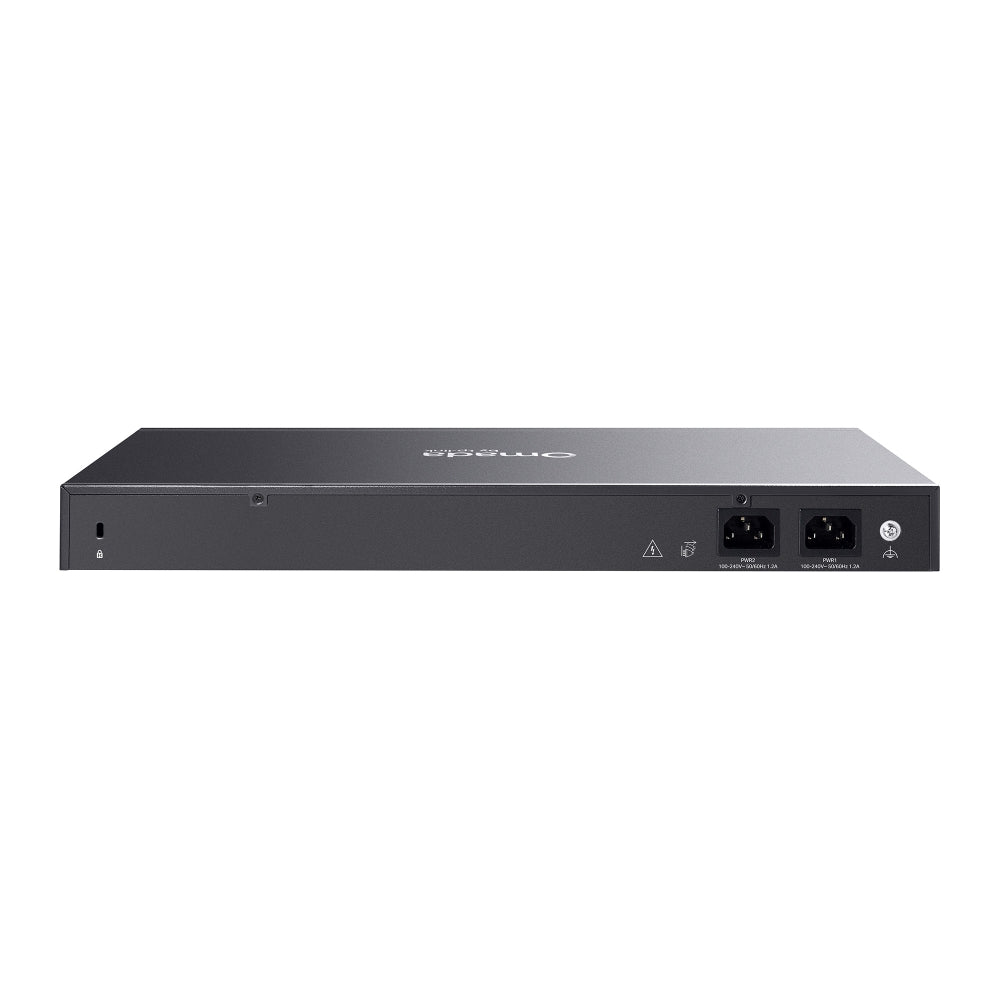

  • Dual internal power supplies provide mutual backup
  • Physical stacking up to 4 units for built-in redundancy and performance
  • L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
  • Security strategies: ACL, Port Security, DoS Defend, 802.1X
  • ERPS supports rapid protection and recovery in a ring topology
  • Centralized cloud management via the Omada SDN controller
  • Standalone management via web, CLI, SNMP, and RMON

 Chat with us on WhatsApp

Collection: Wi-Fi Routers, Cameras & Accessories

Delivery and Shipping

Ships from Karachi, delivered in 2-4 working days nationwide!

View full details

Description

What This Product Does

Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.

High-speed Connectivity and Powerful Stacking

20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.

Highly Available

ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
